联轴器用不锈钢膜片

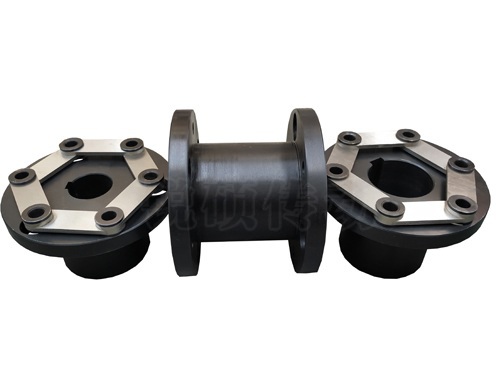

不锈钢膜片具有6角、8角或多或10角的造型、所以转矩传递十分均匀，其适用环境温度可从–20℃至少+280℃、采用特殊材质适用。联轴器膜片广泛用于各种机械装置的轴系传动联轴器膜片的弹性元件由很薄的不锈钢膜片叠合成的膜片组件，膜片通常有束腰型，多边环形等形状，处于同一分布圆上的精密螺栓分别与主从动法兰联接。
膜片组件以三维变形形式承受主从动法兰的不对中。
膜片本身很薄，所以当相对位移荷载产生时它很容易弯曲，因此可以承受高达1.5度的偏差，同时在伺服系统中产生较低的轴承负荷。双膜片联轴器常用于伺服系统中，膜片具有很好的扭矩刚性，但稍逊于波纹管联轴器。
另一方面，双膜片联轴器非常精巧，如果在使用中误用或没有正确安装则很容易损坏。所以保证偏差在联轴器的正常运转的承受范围之内是非常必要的。选择适合的联轴器是用好联轴器的关键一步，在设计阶段就得考虑选用什么类型的轴器了。
沧州锐硕传动机械有限公司生产的膜片联轴器膜片，材质有304不锈钢，316不锈钢，形状有圆形，八边形，圆弧形，等很多种形状，还有叠片，满足不同的使用。
我厂备有常规型号的“现货”膜片，用户可提供“膜片螺栓孔直径、螺栓孔厚度、螺栓孔中心距”等数据和客服确定是否是现货供应。由于膜片属于配件，并无国标对膜片尺寸的相关数据，所以为了保证 我们的膜片与您的联轴器100%吻合，请务必提供相应数据给我们！！
Diaphragm six Angle, Angle of 8 or 10 Angle shape, so the torque transmission is veryuniform, the applicable temperature from - 20 ℃ at least+ 280 ℃, and the use of special materials for. Coupling shaft transmission ofdiaphragm is widely used in all kinds of machineryCoupling the elastic element of the diaphragm made very thin stainless steel diaphragmcomposite diaphragm components, diaphragm type usually has a waist, multilateralcircular shape, etc, at the same precision bolts respectively with master-slave distributed round flangeconnection. Diaphragm components in the form of three-dimensional deformation undermaster-slave motion methodIn the wrong. Diaphragm itself is very thin, so it is easy to bend when produce relative displacementload, so it can bear the deviation of up to 1.5 degrees, at the same timeServo system is formed in the lower bearing load. Double diaphragm coupling is oftenused in servo system, has the very good torque stiffness of diaphragm, butLess in the corrugated pipe couplings. On the other hand, the double diaphragm couplingis very delicate, if in use is misuse or not properly installedEasy to damage. So ensure the deviation in the normal operation of coupling affordableis very necessary. Choose a suitable coupling isWith good coupling of the key step in the design stage have to consider to choose whattype of shaft. Botou city changsheng petrochemical machinery factory production of diaphragm couplingdiaphragm, made of 304 stainless steel, 316 stainless steel, with round shape, eightsides Shape, circular arc form, and so on many kinds of shapes, and laminated, meet differentuse. Our factory equipped with conventional models of "spot" diaphragm, the user can provide"diaphragm bolt hole diameter, the thickness of the bolt hole, bolt hole centerdistance" Such as data and customer service to determine whether the spot supply. Becausediaphragm are accessories, there is no national standard to the data of patch size, soforEnsure our diaphragm coupling 100% fit with you, please be sure to provide data tous!!
